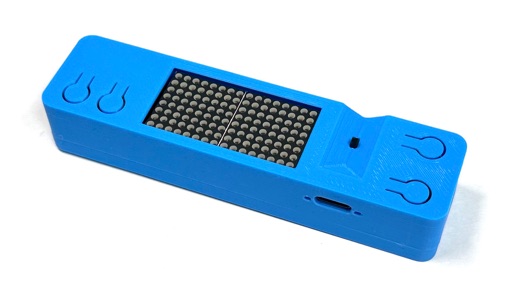

Dominoduino Uni
This is an assembly kit that uses an AVR microcontroller and two matrix LEDs.
Once you solder and assemble it, the built-in program will run.
Sample programs range from a basic LED blinking to a text display, a ball that rolls depending on the tilt using an acceleration sensor, a timer, games, and more, making this a fun kit that not only allows you to do electronic work, but also teaches you programming.
Instructions
Sample sketch : ikkeiplexing_241026.zip
How to install
(1) In the Arduino IDE menu, select Sketch - Include Library - Include ZIP Library... and choose this option.
(2) Install DxCore with Boards Manager
Board : AVR DD-series (Optiboot)
Port : Select the connected USB serial
Chip : AVR64DD28
Others can be left at default
Circuit schematic
Pin arrangement and dimensional drawing
For inquiries, please contact the email address below. Please replace% with @.
maiar_create%zeus.eonet.ne.jp
Building Instructions
Sample sketch configuration
1. Animation
2. Heart
3. Random fade-in
4. Wave
5. Text display
6. Rain
7. Fountain
8. Tilt to roll and bounce
1 + ON: Game
2 + ON: Timer
Sales webpage：Elecrow
