This unit converts the SDI-12 standard used in soil sensors, etc., into a Grove terminal.

   Updated to V1.1.   Now supports Port A of M5Stack BASIC.

Features

　　- Can power sensors with a 5V power supply.

     (Sensors with a 12V power supply cannot be powered; an external power supply is required.)

  - Since the VCC is 5V and the signal line is 3.3V, it can be used with the M5Stack Grove terminal.

  - Port A of M5Stack BASIC previously had a pull-up resistor, making it unusable, but it can now be

     used with V1.1. This means it can be used with any M5Stack port.

Compatible models:

    M5Stack BASIC, M5Stack Core2, M5StickC, M5StickC Plus, M5StickC Plus2,

    M5Stack Capsule, M5Stack ATOM/ATOM LITE, M5Stack ATOM S3/ATOM S3 LITE,

    M5Stack Nano C6, M5Stack Tough

Specifications

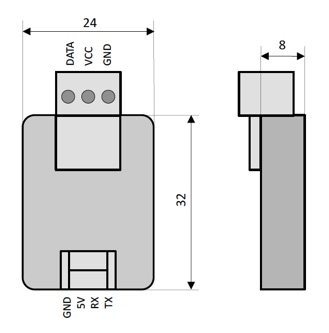

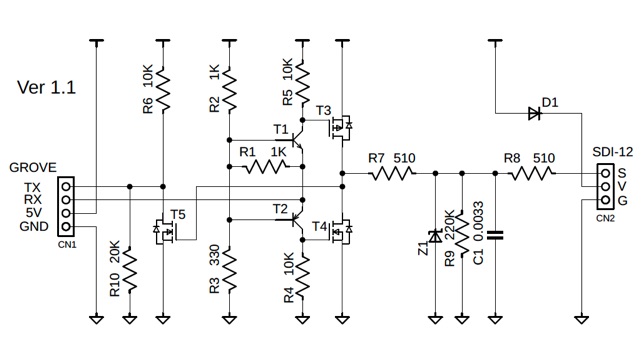

- Circuit configuration conforming to the SDI-12 standard

- SDI-12 standard connector is a VH-3.96 3P

- Grove connector power supply is 5V, signal line is 3.3V (for M5Stack)

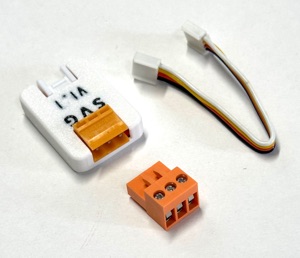

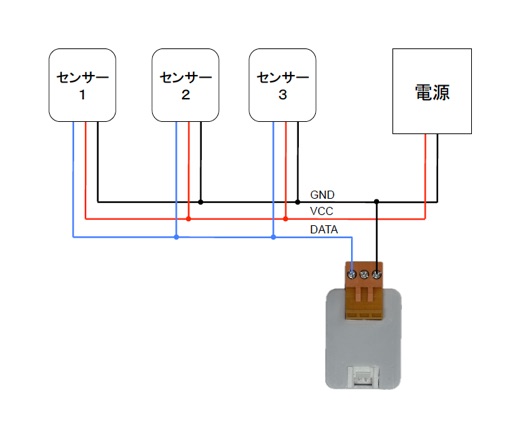

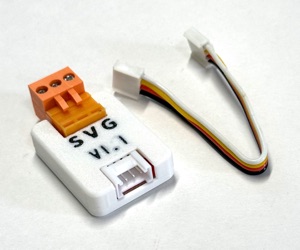

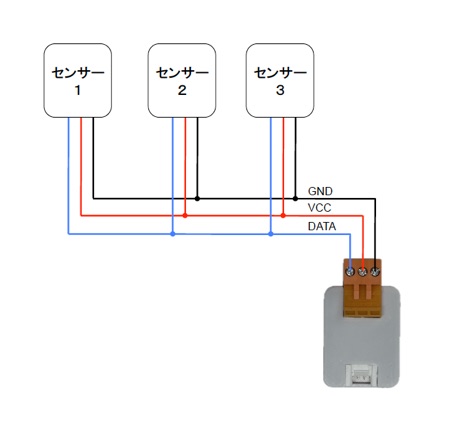

If the sensor is powered by 5V, it can be powered by the conversion unit.

If the sensor is powered by 12V, connect an external power supply (even if the current is too high at 5V).

　　　　Compatible models：

　　　　　　　M5Stack Core2, M5StickC, M5StickC Plus, M5StickC Plus2, M5Stack Capsule,

　　　　　　　　M5Stack ATOM / ATOM LITE, M5Stack ATOM S3 / ATOM S3 LITE, M5Stack Nano C6,

　　　　　　　　M5Stack Tough, M5Stack BASIC (Use Port C of the HMI module)

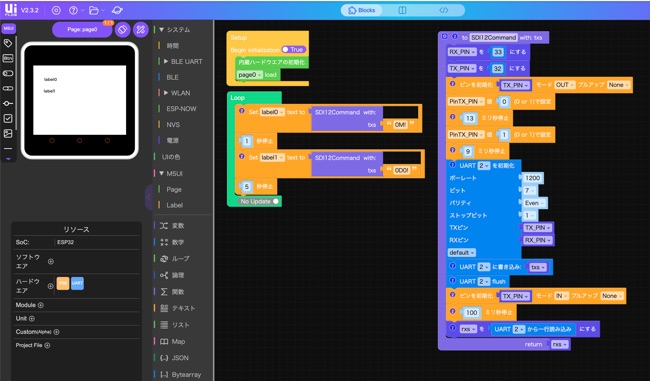

UIFLOW V2.3.2      M5Stack Core2 sample：  SDI12_250807.m5f2
